120V 40W Ceiling Fan Motors / Brushless DC Motor FG Signal With Remote Controller

Product Categories

Guangdong Zhaoli Motor Group Co.,Ltd

Contact Now

Name: 120V 40W Ceiling Fan Motors Brushless DC Motor FG Signal With Remote Controller
Brand: Zhaoli
Price: 1 USD

Brand Name : Zhaoli

Model Number : E9T72HAB86

Certification : CE, ROHS, REACH

Place of Origin : China

MOQ : 1000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1,000pcs per day

Delivery Time : 25-45 days

Packaging Details : cartons + pallets

Name : BLDC Ceiling fan motor

Rated voltage : 108~132VAC

Stack size : φ92mm

Number of poles : Nine poles

Number of phases : three phase

Bearing : Ball bearings

Construction : Outer rotor

Control type : PWM

Output signal : FG

Rectifying method : electronices

Packing : Customized packing

Printing : Customized printing

Anicilary : Emitter and signal Receiver

Application : DC Ceiling fan

Contact Now

BLDC Ceiling Fan Motor Brushless DC Motor 120V 60HZ Input With Remote Controller

Rated voltage	108~132VAC
Operating voltage	100~140VAC
Rated speed(on load)	400+/-10 RPM
Rated power(on load)	40W max
Working duty	S1
Insulation resistance	10MΩmin. (500VDC)
Dielectric strength	1500VAC/1min leakage current <=5mA
Speed control	PWM
Detecting method of motor speed	FG signal

Color	black
Power	Motor 40W max
Character	Vector sine wave control
Function	Through RF(433MHZ) to receive the transmitter signal and control accordingly. Motor on and off; Motor on load speed; Motor Running time; Motor rotation direction
Protection Function	Soft start: When the controller is powered on, the motor will speed up slowly to the required data. Over-voltage and under-voltage protection: When the power input to the controller voltage is higher than 160VAC, or less than 50VAC, the controller will turn off the current. Over-heating protection: When the temperature is higher than 85℃, the motor is turned off or slow down the speed. Lock protection: When the motor suddenly stops due to the external resistance, the controller will turn off the motor current, and try to restart after a few seconds. If there is no resistance, the motor runs normally; if resistance do not disappear, motor will stop running temporarily and after a few cycles, the power would be cut off completely by the controller. Over-current protection: Due to external causes, if the motor current increases which exceeds set value, the controller will turn off the motor. Constant power protection:The maximum load power of the motor is not affected by the voltage value in the operating voltage range.When the load of the motor changes, the power of the motor remains unchanged.

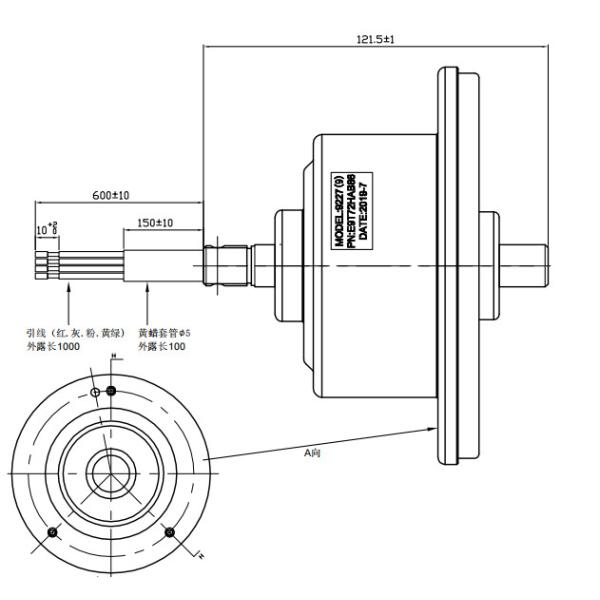

Drawing:

120V 40W Ceiling Fan Motors / Brushless DC Motor FG Signal With Remote Controller

Application: Ceiling fan

120V 40W Ceiling Fan Motors / Brushless DC Motor FG Signal With Remote Controller

Product Tags:

40W Ceiling Fan Motors
